Prekės aprašymas

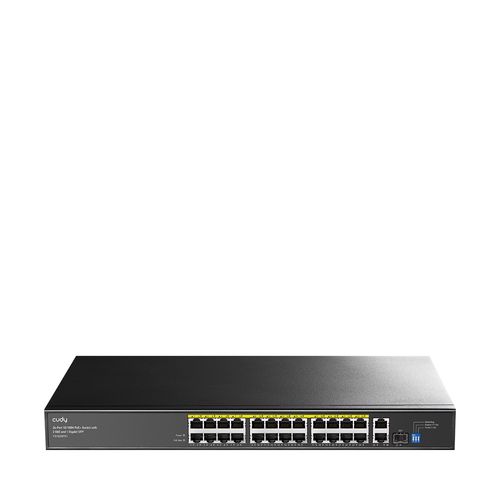

24 Ports Switch CUDY FS1026PS1 4.0 (Unmanaged)
Specifikacijos
SKU
U-4680249
Prekės kodas
SWITCHCUDYFS1026PS1V4
Tiekėjo prekės aprašymas
- Type: Switch (Unmanaged)
- Model: CUDY FS1026PS1 4.0
- Case: Metal
- Ports: 26 x RJ45 (24 x 100 Mbps PoE, 2 x 1 Gbps Uplink); 1 x 1 Gbps SFP
- Operating modes: VLAN/Default/Extend
- PoE Power per port: 30 W
- Maximum PoE Power: 300 W
- PoE standards: 802.3af/at
- Switching capacity: 10,8 Gbps
- MAC table size: 2048
- Forwarding rate: 8 Mpps
- Fan: Yes
- Power input: 100 - 240 V AC
- Power consumption: 300 W
- Dimensions (WxDxH): 440 mm x 180 mm x 44 mm
- Operating temperature: from -0°C to 40°C
- General
- Model VersionFS1026PS1 4.0
- 1.25G SFP Slots1
- Gigabit RJ45 Ports2
- 10/100 Mbps RJ45 Ports24
- 10/100 Mbps RJ45 PoE Ports#1~#24
- Max Power on a Single PoE Port30W
- PoE Port NotesCompliant with IEEE 802.3at/af standards
- Intelligent Power ManagementAutomatically disconnects the last powered device when power exceeds budget
- Shielded RJ45 PortsTrue
- Extend Mode Ports#17~#24
- VLAN Mode Ports#1~#24
- LED IndicatorsPower, Link/ACT for each port, PoE Max Status
- Power InputAC Inlet
- Physical ButtonsExtend On/Off, VLAN On/Off, PoE Watchdog On/Off
- Watchdog NoteReboots inactive clients after 5 min; not recommended for auto-updating clients
- Copper Speed and DistanceCat. 3+: 100m @10 Mbps; Cat. 5+: 100m @100 Mbps; Cat. 5e+: 100m @1 Gbps, 250m @10 Mbps (Extend Mode only)
- Optical Spec and DistanceDepends on installed optical module
- MAC Address Table2048
- Max Switching Capacity10.8 Gbps
- Max Forwarding Rate8 Mpps
- Jumbo Frame Size2 KB
- Packet Buffer2 Mbit
- Power MethodsAC
- AC Input100–240V~, 50/60Hz
- Power Supply300W
- Max Power Consumption (excluding PoE)7W
- Supported ProtocolsIEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at
- PoE ManagementIntelligent Power Management
- Cooling1× Smart Fan (auto speed adjustment based on power usage)
- Grounding MethodsThree-prong plug, Grounding point
- EMS ProtectionIEC/EN 61000-4-2: ESD (Contact: 6kV, Air: 8kV); IEC/EN 61000-4-5: Surge (Power: DM 2kV, CM 4kV; RJ45: CM 4kV)
- Operating Temperature0 ~ 40°C (32 ~ 104°F)
- Storage Temperature-40 ~ 70°C (-40 ~ 158°F)
- Operating Humidity10% ~ 90% non-condensing
- Storage Humidity10% ~ 95% non-condensing
- Dimensions440 × 180 × 44 mm (17.32 × 7.09 × 1.73 inches)
- Product Weight2208.9 g (77.92 oz.)
- Casing MaterialMetal
- Installation OptionsDesktop or rack-mounted via brackets
- Package ContentsFS1026PS1, Power Cord, Mounting Kit, Installation Guide
