Prekės aprašymas

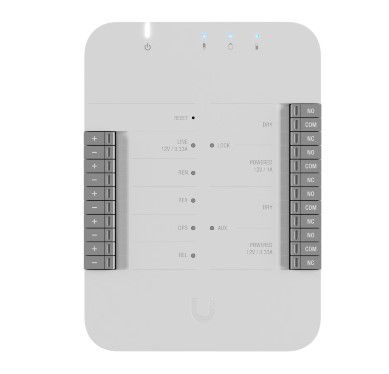

Doors access controller Ubiquiti UniFi UA-Hub-Door
Specifikacijos
Tiekėjo prekės aprašymas
- Type: Door Access Controller
- Model: UBIQUITI UA-Hub-Door
- Network Ports: 5x 10/100/1000 Base-T
- Power Supply: PoE++
- Power Consumption: Without PoE - 30W, With PoE - 50W
- Input Voltage: 50V DC, 1A
- PoE Output: 4x PoE, 50V DC
- Operating Temperature: 0°C to 40°C
- General
- Dimensions174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
- Weight363 g (12.8 oz)
- Enclosure materialPolycarbonate
- Mounting materialPolycarbonate
- Networking interface(5) 10/100/1000 Base-T
- Power methodPoE++, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
- Max. power consumptionWithout PoE output: 30W, With PoE output: 50W
- PoE input50V DC, 1A
- PoE outputPoE passthrough, (4) PoE, 50V DC, total 20W
- LEDsWhite/blue (Learn more)
- Button(1) Factory-reset
- Digital inputRequest to exit/request to enter/remote release/door position sensor
- Dry output relayLock: 30V DC, 1A, Aux: 30V DC, 1A
- Powered output relayLock: 12V DC, 1A, Aux: 12V DC, 0.33A
- 12V DC, 0.33A PoE cabling requirementsCable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.
- Operating environmentIndoor use only
- Ambient operating temperature0 to 40° C (32 to 104° F)
- Ambient operating humidity5 to 95% noncondensing
- UL 294 levelDestructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
- UL 294 statementCompliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
Tiekėjo specifikacijos
Product code
UBIQUAHUBDOOR
Category
Access cont
Brand
Ubiquiti
Supplier's product code
UBIQUAHUBDOOR
Product ID
U-4431263
Tiekėjo pateikiama informacija apie prekę gali skirtis nuo realaus produkto. Jei pastebėjote neatitikimų praneškite apie tai el. paštu [email protected].
