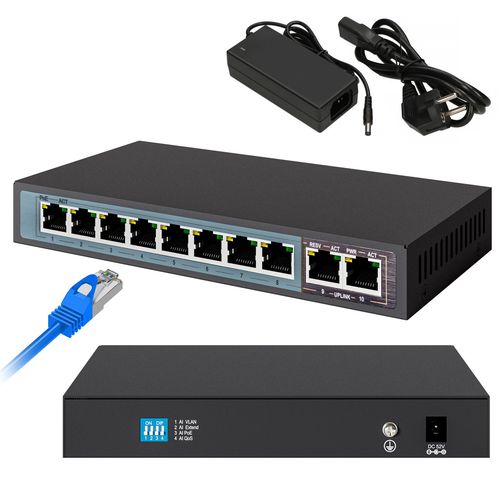

PoE switch for surveillance - Extralink CERES
Extralink CERES (extralink ceres switch ex3906 8x) is a 10-port PoE switch with 4 modes of operation: AI QoS mode, AI VLAN, AI Exten and smart power mode. AI QoS mode is ideal for surveillance applications, ensuring smooth video by processing with the highest priority video data.
Port separation using the VLAN function
The extralink switch has AI VLAN mode, so ports 1-8 are isolated from each other, which helps to effectively suppress starvation storms and improve network performance.
Powering cameras up to 250 meters and monitoring device performance in real time
In AI Extend mode, ports 1-8 can effectively transmit data and PoE power over a distance of up to 250 meters, which is ideal for surveillance systems and when powering cameras or access points. In AI PoE mode, the switch automatically detects the operating status of the connected device, when it finds that the device is working incorrectly, it automatically restarts the device.
Key features:
Key features:
- AI PoE mode: automatically detects an unresponsive device, shuts down PoE power on the port in question and restarts the power supply
- AI QoS mode: adjust the priority of video data packets, making video surveillance transmission smoother
- AI Extend mode: ports 1-8 support power over 250 meters (use Cat. 5e or Cat. 6 cable)
- Supports IEEE 802.3af/at standard
- AI VLAN mode: isolate ports 1-8 from each other
- Power circuit protection for protection of terminal equipment
- Auto MDI/MDIX support
- Store-and-forward
- Fanless design - energy savings
- Power saving function on unused ports
| LAN standard | Fast Ethernet 10/100Mb/s |
| Number of LAN ports | 10x [10/100M (RJ45)] |
| Number of PoE ports | 8x [802.3af/at (100M)] |
| 10G support | No |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Cable types supported | Cat5, Cat5e |
| Certification | CE, FCC |
| Cloud-managed | No |
| Depth | 94 |
| Form factor | 1U |
| Height | 27 |
| Housing material | Metal |
| LED indicators | Link |
| MAC address table | 4096 |
| Management | No |
| Networking standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| Power (W) | 100 |
| Power (W) | 96 |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) pass through | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power source | DC |
| Power supply included | Yes |
| Product colour | Black |
| Quality of Service (QoS) support | Yes |
| Rack mounting | No |
| Reset button | No |
| Stackable | No |
| Switch layer | L2 |
| Switch type | Unmanaged |
| Switching capacity | 1.2 |
| Switching layer | 2 |
| Temperature sensor | No |
| Throughput | 2 |
| Traffic classification | No |
| Type of case | Desktop |
| VLAN support | No |
| Web-based management | No |
| Weight | 500 |
| Width | 184 |
