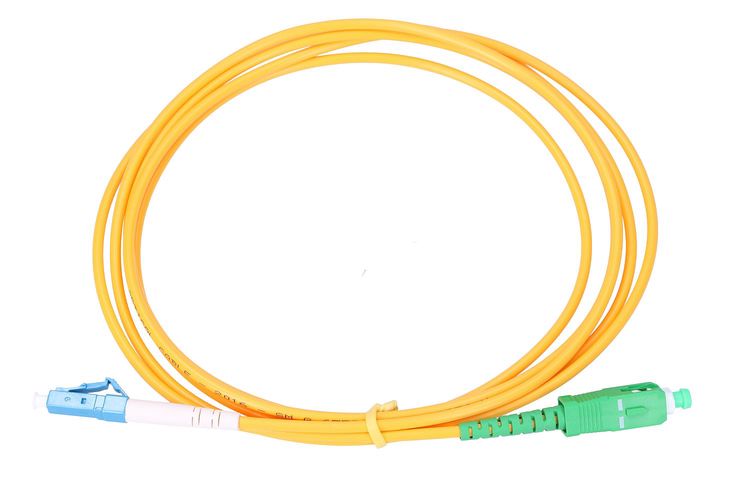

PATCHCORD LC/UPC-SC/APC SM SIMPLEX 3.0MM 2M
Single-mode patchcord with a length of 1m, cable diameter of 3mm, terminated with LC/UPC-SC/APC connectors is used to connect optical network equipment such as switches or converters. It contains bidirectional transmission. Patchcords are also widely used in FTTH networks to connect OLT and ONU/ONT devices.
Features of patchcords
- Low attenuation
- Operation over a wide temperature range
- Repeatability of measurements
- Repeatability of parameters
Destination
- FTTH networks
- LAN, WAN
- WDM systems
| Cable length | 2,0000 |
| Cable type | FTTH |
| Product colour | yellow |
| Connector 1 gender | male |
| Connector 2 gender | male |
| Return loss | 66,1000 |
| Fibre optic type | g_652d |
| Connector polish type | apc |
| Full duplex | Nie |
| Connector 1 | LC |
| Connector 2 | SC |
| Cable diameter | 3,0000 |
| Insertion loss | 0,1600 |
| Fiber mode structure | single_mode |
| Jacket material | nylon_polyvinyl_chloride_pvc |
