Prekės aprašymas
Specifikacijos
Tiekėjo prekės aprašymas

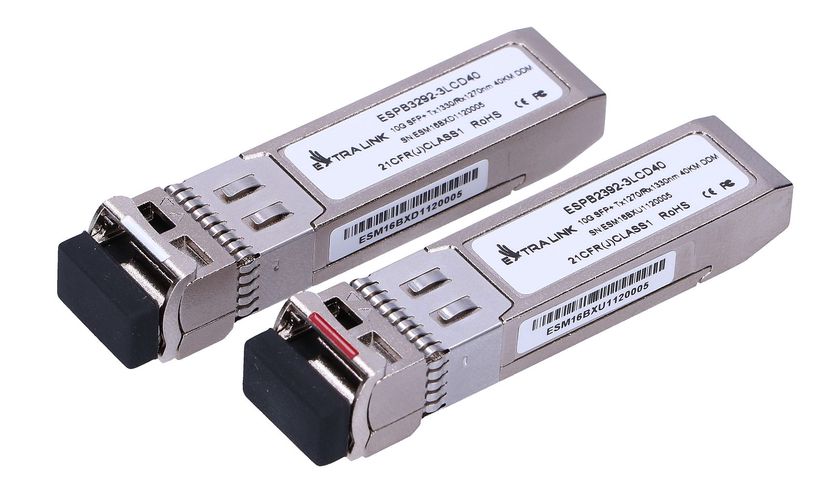

Pair of 10G WDM 1270/1330 40KM LC DDM SFP modules for single-mode fiber.
EXTRALINK SFP BIDI transceivers are small form factor single-mode SFP modules that provide two-way optical data transmission (e.g., 10GBASE-LR/LW as defined by IEEE 802.3ae). The SFP optical module is equipped with a 20-pin SFP connector that allows the transceiver to be connected without shutting down the device. The EXTRALINK SFP BIDI is designed for single-mode fibers and operates at nominal wavelengths, namely 1270 nm or 1330 nm. The transmitter section uses a multi-mode DFB quantum well compliant with International Safety Standard IEC-60825, and the receiver section uses an integrated InGaAs detection preamplifier (IDP) mounted in the optical head and an IC limiting power amplifier. The single-mode SFP insert supports data rates from 9.95 Gbps to 10.3 Gbps.
Special features
| Output connector | LC |
| SFP module - port speed | 10 Gbps |
| Transmission distance | Over 20km |
| Certification | FCC |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber cable diameters supported (core/cladding) | 9/125 |
| Fiber ethernet cabling technology | 10GBASE-LR,10GBASE-LW |
| Fiber optic connector | LC |
| Fiber type | SM (Single-Mode) |
| Interface type | SFP+ |
| Maximum data transfer rate | 10000 |
| Maximum operating temperature | 70 |
| Networking standards | IEEE 802.3ae |
| Number of products included | 2 |
| Rx wavelength (min) | 1330 |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Sustainability certificates | CE, RoHS |
| Tx wavelength (min) | 1270 |
| Type of SFP duplex | Wavy (WDM) |
| Wavelength | 1270/1330 nm |
| Wavelength-division multiplexing (WDM) | Yes |
