Prekės aprašymas
Specifikacijos
Tiekėjo prekės aprašymas

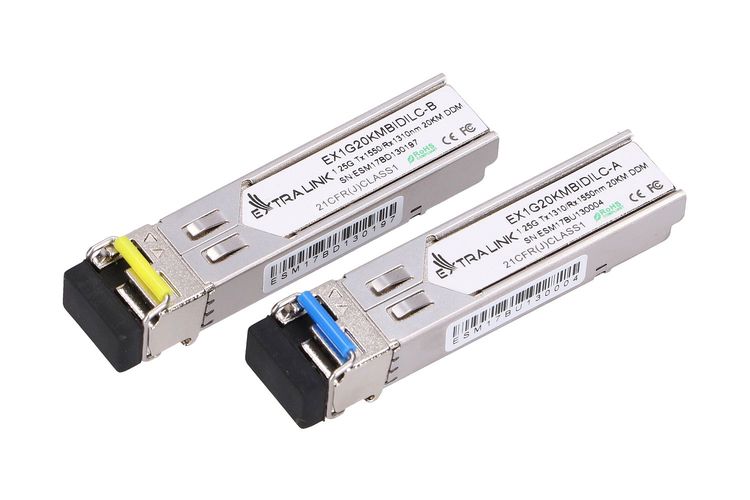

Efficient pair of SFP 1.25G BIDI 1310/1550NM 20KM LC DDM modules.
Extralink SFP 1.25G optical transceivers are high-performance, cost-effective single-mode fiber SFP modules supporting data rates of 1.25 Gbps/1.0625 Gbps and a transmission range of up to 20 km with SMF. They use single-mode fiber for fiber optic transmission. Extralink SFP 1.25 G operates on alternating wave
(Tx=1310 nm, Rx=1550 nm). The SFP 1.25 G optical module consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a transimpedance preamplifier (TIA), and an MCU control unit. All single-mode SFP inserts meet Class I laser safety requirements.
Single-mode SFP inserts for a wide range of applications
SFP 1.25G optical modules are used in fiber channels, Gigabit Ethernet, switch to switch interfaces, switched backplane applications, router/server interfaces and other optical transmission systems.
Special features
Special features
- RoHS compatibility
- Single 3.3 V AC adapter
- Data rate of 1.25 Gbps/1.063 Gbps
- Compatible with SFP MSA and SFF-8472 with LC slot
- Compatibility with SONET OC-24-LR-1
- Digital diagnostic monitoring - internal or external calibration
| Output connector | LC |
| SFP module - port speed | 1,25 Gbps |
| Transmission distance | 4-20km |
| Certification | FCC |
| Fiber optic connector | LC |
| Fiber type | SM (Single-Mode) |
| Interface type | SFP |
| Maximum data transfer rate | 1250 |
| Maximum transfer distance | 20000 |
| Number of products included | 2 |
| Rx wavelength (min) | 1550 |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Sustainability certificates | CE, RoHS |
| Tx wavelength (min) | 1310 |
| Type of SFP duplex | Wavy (WDM) |
| Wavelength | 1310/1550 nm |
