Prekės aprašymas

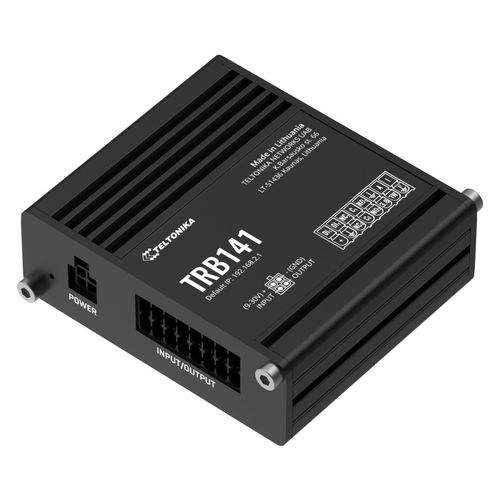

Gateway Teltonika TRB141
Specifikacijos
Tiekėjo prekės aprašymas
- Type: Network bridge
- Brand: Teltonika
- Model: TRB141
- Interface: LTE
- Connection type: 4G/LTE (Cat1), 3G, 2G
- Protocols: TCP, VPN
- Software: RutOS
- Management: RMS
- Inputs / outputs: 2× In/Out
- SIM slot: Yes
- Connector: SMA
- Protection class: IP30
- Industrial
- General
- Mobile module4G LTE Cat 1 up to 10 DL/5 UL Mbps; 3G up to 384 DL/384 UL kbps; 2G up to 296 DL/236.8 UL kbps
- 3GPP ReleaseRelease 12
- StatusIMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
- SMSSMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- USSDSupports sending and reading Unstructured Supplementary Service Data messages
- Block/Allow listOperator block/allow list (by country or individual operators)
- Multiple PDNUse of multiple PDNs for network access and services
- Band managementBand lock, used band status display
- SIM PIN code managementSetting, changing or disabling SIM PIN
- APNAuto APN
- BridgeDirect mobile ISP-to-LAN device connection
- PassthroughGateway assigns mobile WAN IP to LAN device
- RoutingStatic routing
- Network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT
- VoIP passthrough supportH.323 and SIP-alg NAT helpers for VoIP routing
- Connection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP link inspection
- FirewallPort forward, traffic rules, custom rules, TTL target customization
- Firewall status pageDisplays Firewall statistics, rules, and counters
- Port managementView and control device ports, speed, and auto-configuration
- Network topologyVisual network layout showing connected devices
- DHCPStatic/dynamic IP allocation, relay, server configuration, leases with MAC wildcards
- QoS / SQMTraffic priority by source/destination, service, protocol, port; WMM, 802.11e
- DDNSSupports >77 providers, manual config available
- DNS over HTTPSSecure DNS via HTTPS proxy
- Network backupMobile, VRRP, Wired auto failover options
- SSHFSMount remote file system via SSH
- Traffic ManagementReal-time monitoring, signal charts, traffic history
- AuthenticationPre-shared key, digital/X.509 certificates, TACACS+, RADIUS, IP/login blocking, time-based login blocking, random password generator
- Firewall configPreconfigured via WebUI, full CLI access, DMZ, NAT, NAT-T, NAT64
- Attack preventionDDOS, SSH/HTTP/HTTPS attack prevention, port scan defense
- VLANPort and tag-based VLAN separation
- Mobile quota controlData limits, custom period/start, warnings, phone number
- WEB filterBlacklist, whitelist for web access control
- Access controlControl access to SSH, Web UI, CLI, Telnet
- Certificate ManagerCreate CA, server, client, Let's Encrypt, SCEP certificates
- OpenVPNMultiple client/server support, 27 encryption methods
- OpenVPN EncryptionSupports DES, RC2, DES-EDE, AES (128/192/256-bit) in CBC, CFB, OFB, GCM modes, CAST5, BF, DESX
- IPsecXFRM, IKEv1/v2 with 14 encryption methods
- GREGRE tunnel, GRE over IPsec supported
- PPTP, L2TPClient/server instances, L2TPv3, L2TP over IPsec
- StunnelTLS proxy encryption for clients/servers without code changes
- DMVPNScalable IPsec VPN, Phase 2/3, Dual Hub support
- SSTPSSTP client support
- ZeroTierZeroTier VPN client support
- WireGuardWireGuard VPN client and server support
- TincEncrypted/authenticated/compressed tunnels, client/server support
- OPC UAClient and Server modes
- OPC UA connection typesTCP
- Modbus MQTT GatewaySend/receive MODBUS Server data via MQTT
- MODBUS modesServer, Client
- MODBUS connection typesTCP
- Custom registersMODBUS TCP block requests for file read/write to extend client functions
- MODBUS data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB/LSB); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII
- Data to Server protocolsHTTP(S), MQTT, Azure MQTT
- Data to Server featuresExtract and send parameters from different protocols to one server; LUA scripting support
- DNP3 modesStation, Outstation
- DNP3 connection typesTCP
- DLMS/COSEM protocolDLMS standard for utility meter data exchange
- DLMS modesClient
- DLMS connection typesTCP
- Web API supportTeltonika Networks Web API (beta); endpoint documentation available
- WEB UIHTTP/HTTPS access, status, config, firmware update, CLI, logs
- FOTAFirmware update from server, auto-notification
- SSHSSH v1/v2
- SMS managementSMS status, configuration
- Call functionsReboot, status, mobile data toggle, output control, answer/hang-up with timer
- TR-069Support for OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- MQTT featuresMQTT Broker and Publisher
- SNMP supportSNMP v1/v2/v3, SNMP Trap, brute force protection
- JSON-RPCHTTP/HTTPS management API
- RMSTeltonika Remote Management System
- ThingWorx platformWAN type, IP, operator name, signal strength, network type monitoring
- Cumulocity platformMonitors model, revision, WAN/IP, Cell ID, ICCID, IMEI, operator, signal, reboots, firmware updates
- Azure IoT HubSend parameters to cloud, direct API methods, zero-touch provisioning
- AWS IoT CoreDevice API via AWS Jobs support
- CPUARM Cortex-A7 1.2 GHz
- RAM128 MB DDR2
- FLASH storage512 MB SPI Flash
- WEB UI featuresUpdate/config profiles, backups, firmware check
- FOTA updateFirmware update supported
- RMS firmware managementRemote firmware/config updates
- Keep settingsFirmware update without config loss
- Factory resetRestores default settings including IP, PIN, and user data
- Firmware customisationRutOS (OpenWrt based), branding, logos, colors
- Supported languagesBusybox, Lua, C, C++, Python
- Development toolsSDK package provided
- GPL customizationCreate custom firmware and Web UI
- Package ManagerInstall additional device software
- Inputs2 x Digital (passive/active), 1 x Isolated, 1 x Analog (4–20 mA), 1 x Configurable; Logic Low: 0–5 V, High: 8–30 V
- Outputs2 x Relay (latching/non-latching), 1 x Configurable open collector (max 30 V, 300 mA)
- Events triggerEmail, RMS, SMS
- I/O jugglerSet I/O conditions to trigger events
- Power connector4-pin industrial DC socket
- Power input9–30 VDC, reverse polarity and surge protection >31 VDC 10 µs max
- Power consumption< 5 W
- Physical interfaces3 x Digital Inputs, 1 x Analog input, 2 x Relays (16-pin), 2 x I/O pins (4-pin power), 1 x SMA for LTE, 1 x micro USB, 1 x SIM slot (Mini SIM – 2FF), 1 x 1-Wire
- Status LEDs3 x Connection type, 5 x Signal strength, 1 x Power
- Reset buttonReboot, user reset, factory reset
- Casing materialAluminium housing
- Dimensions (W x H x D)74.5 x 25 x 64.4 mm
- Weight136 g
- Mounting optionsDIN rail, wall, flat surface (kits required)
- Operating temperature-40 °C to 75 °C
- Operating humidity10% to 90% non-condensing
- Ingress ProtectionIP30
- Regulatory certificationsCE, UKCA, EAC, UCRF, ANRT, Kenya, ICASA, Anatel, NOM, RCM, Giteki
- Approved operatorDeutsche Telekom AG
- EMC complianceDraft EN 301 489-1 V2.2.0, EN 301 489-52 V1.1.0
- EMC immunityEN 61000-4-2:2009 (ESD), EN IEC 61000-4-3:2006+A1+A2 (Radiated), EN 61000-4-4:2012 (EFT), EN 61000-4-5:2014 (Surge), EN 61000-4-6:2014 (CS), EN 61000-4-11:2004 (DIP)
- RF standardsEN 301 511 V12.5.1, EN 301 908-1/2/13 V13.1.1
- Safety standardsEN 62368-1:2014+A11:2017, EN IEC 62232:2017, EN 50385:2017, AS/NZS 62368.1:2018, IEC 62368-1:2018
Tiekėjo specifikacijos
Product code
LTETRB141
Brand
Teltonika
Supplier's product code
LTETRB141
Product ID
U-4858771
Category
Netw
Tiekėjo pateikiama informacija apie prekę gali skirtis nuo realaus produkto. Jei pastebėjote neatitikimų praneškite apie tai el. paštu [email protected].
