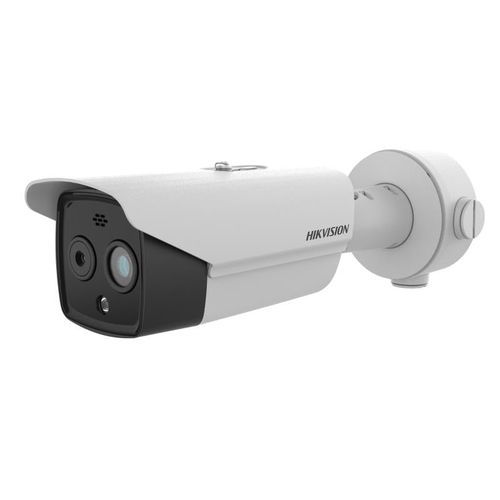

Hikvision HeatPro series thermal bullet DS-2TD2628-10/QA
Prekės kodas: KIPDS2TD262810QA
Nuotrauka yra tik iliustracija. Tikslias produkto specifikacijas rasite aprašyme.
Pristatymo terminai
2025-10-23 Numatomas pristatymas užsakius dabar
Prekė užsakoma iš tiekėjo sandėlio. Jei tiekėjas šios prekės pristatyti iki nurodytos datos negalės, informuosime jus el. paštu.
 Yra | Tiekėjo sandėlis |
Pristatymas į namus
Pristatymas į namus
Perdavę prekes kurjeriui, informuosime Jus el. paštu.
Virš 70,00 € (Užsakymams iki 1000 kg) | Nemokamai |
Iki 70,00 € (Užsakymams iki 3 kg) | 3,49 |
Iki 70,00 € (Užsakymams iki 1000 kg) | 3,49 - 4,99 € |
Pristatymas į paštomatą
Pristatymas į paštomatą
Perdavę prekes kurjeriui, informuosime Jus el. paštu. Užsakymai virš 50.00 € pristatomi nemokamai.
2,39
Prekės aprašymas
Hikvision HeatPro series thermal bullet DS-2TD2628-10/QA
Specifikacijos
Tiekėjo prekės aprašymas
- Type: Thermal bi-spectrum IP camera (Bullet)
- Model: DS-2TD2628-10/QA
- Brand: Hikvision
- Series: HeatPro
- Thermal module: 256×192, NETD < 40 mK (@25 °C, F#=1.1), focal length 9.7 mm
- Temperature range: -20 °C – +150 °C, accuracy ±8 °C
- Optical module: 9.7 mm, IR illumination up to 30 m
- Features: Built-in light and sound alarm
- Power supply: PoE
- Protection: IP67
- Included: Bracket 1260ZJ
- Audible and Visual Alarm
- Audio alarm Yes, for two types of audible alarm (VCA and Temperature Exception)2 preset voice alerts (one for each)6 importable user-defined voice alerts (6 options shared in the two types)
- Visual AlarmYes. White light alarm with adjustable flashing frequencies
- White Light RangeUp to 30 m
- Detection Range Table/Smart Function Range
- VCA Range for Humans80 m
- VCA Range for Vehicles240 m
- General
- Dimensions321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
- Power Consumption24 VAC ± 25%: 0.8 A, Max.8.5 W12 VDC ± 25%: 0.7 A, Max.8.5 WPoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
- Power Supply24 VAC ± 25%, 12 VDC ± 25%, two-core terminal blockPoE (802.3af, class 3)
- Protection LevelIP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protectionIK10-rated housing
- Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Weight1550 g (3.41 lb)
- Working Temperature/HumidityTemperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less
- Illuminator
- IR DistanceUp to 30 m
- IR Intensity and AngleAutomatically adjusted
- Image Effect
- Target ColorationYes. Supported in white hot and black hot mode.
- Interface
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
- Alarm Input2, alarm input (0-5 VDC)
- Alarm Output2, alarm output (alarm response actions configurable)
- Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
- Audio Input1, 3.5 mm Mic in/Line in interfaceLine input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear level, impedance: 600 Ω
- Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)
- Network
- APIISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
- ClientiVMS-4200, Hik-Connect
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,TLS
- SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- Web BrowserLive view (plug-in allowed) : Internet Explorer 11Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +Local service : Chrome 57.0 +, Firefox 52.0 +
- Optical Module
- Aperture (Range)F1.6
- Field of View39.4° × 22.1° (H × V)
- Focal Length8.0 mm
- Image Sensor1/2.7" Progressive Scan CMOS
- Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
- Resolution2688 × 1520
- Shutter Speed1 s to 1/100,000 s
- WDR120 dB
- Smart Function
- General FunctionFire detection, smoking detection, sun-reflection filter
- Temperature Accuracy± 8°C (± 14.4°F)
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range-20°C to 150°C (-4°F to 302°F)
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Thermal Module
- ApertureF1.0
- Digital Zoom×2, ×4
- Field of View18.0° × 13.5° (H × V)
- Focal Length9.7 mm
- IFOV1.24 mrad
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Min. Focusing Distance1.5 m
- NETD< 40 mK (25°C, F1.0)
- Pixel Pitch12 μm
- Resolution256 × 192
- Spectral Range8 μm to 14 μm
- Video and Audio
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Main StreamThermal:25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-streamThermal: 25 fps (704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (704 × 576, 352 × 288)60 Hz: 30 fps (704 × 480, 352 × 240)
- Video CompressionMain Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG
Tiekėjo specifikacijos
Category
Thermal cam
Supplier's product code
KIPDS2TD262810QA
Product ID
U-4825426
Product code
KIPDS2TD262810QA
Brand
Hikvision
Tiekėjo pateikiama informacija apie prekę gali skirtis nuo realaus produkto. Jei pastebėjote neatitikimų praneškite apie tai el. paštu [email protected].
