Hikvision NVR DS-9632NXI-I8/S (E)
Prekės kodas: NVRDS9632NXII8E

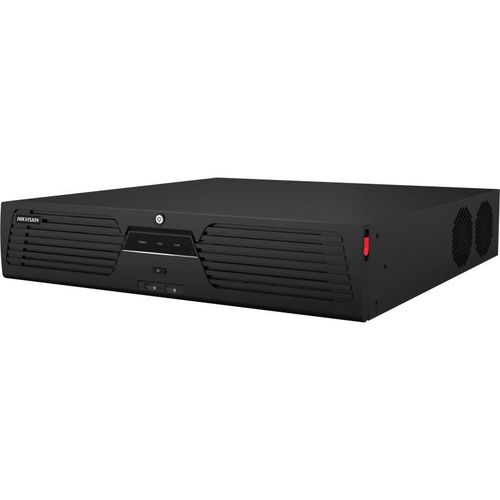

Nuotrauka yra tik iliustracija. Tikslias produkto specifikacijas rasite aprašyme.
Pristatymo terminai
2025-08-28 Numatomas pristatymas užsakius dabar
Prekė užsakoma iš tiekėjo sandėlio. Jei tiekėjas šios prekės pristatyti iki nurodytos datos negalės, informuosime jus el. paštu.
 Yra | Tiekėjo sandėlis |
Pristatymas į namus
Pristatymas į namus
Perdavę prekes kurjeriui, informuosime Jus el. paštu.
Virš 70,00 € (Užsakymams iki 1000 kg) | Nemokamai |
Iki 70,00 € (Užsakymams iki 3 kg) | 3,49 |
Iki 70,00 € (Užsakymams iki 1000 kg) | 3,49 - 4,99 € |
Pristatymas į paštomatą
Pristatymas į paštomatą
Perdavę prekes kurjeriui, informuosime Jus el. paštu. Užsakymai virš 50.00 € pristatomi nemokamai.
2,39
Prekės aprašymas
Hikvision NVR DS-9632NXI-I8/S (E)
Specifikacijos
Tiekėjo prekės aprašymas
- Video formats: H.265+/H.265/H.264+/H.264
- Intelligent analytics based on deep learning algorithm
- Up to 4-channel perimeter protection
- Up to 1-channel facial recognition in video stream or up to 4-channel facial recognition from images
- Up to 32 IP camera inputs
- Up to 16-channel 1080p decoding capability
- Up to 320 Mbps incoming bandwidth
- AcuSearch – people search by attributes
- ANPR
- By CameraAll channels
- Plate AttributesVehicle brand, vehicle color, vehicle type
- Vehicle AttributesPlate number, license plate color, license plate type
- Auxiliary Interface
- Alarm In/Out16/8
- CapacityUp to 10 TB capacity for each disk
- Ctrl 12VControllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.;NA
- DC 12V12 VDC, 1 A power output;NA
- SATA8 SATA interfaces
- Serial InterfaceRS-485 (full-duplex), RS-232, Keyboard
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- eSATA1 eSATA interface
- Certification
- CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
- FCCPart 15 Subpart B, ANSI C63.4-2014
- Obtained CertificationCE, FCC, IC
- Decoding
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
- Aux Port Window Division1/2/4/6/8/9/16/25/32/36
- Decoding Capability16-ch@1080p (30 fps)
- Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4
- Dual-Stream RecordingSupport
- Live View Window Division1/2/4/6/8/9/16/25/32/36
- Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF*: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs.
- Stream TypeVideo, Video & Audio
- Synchronous Playback32-ch
- Facial Recognition
- Face Picture Comparison4-ch face picture comparison alarm
- Face Picture LibraryUp to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 15KB, total capacity ≤ 150 MB)
- Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
- Facial Detection and Analytics Performance1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
- General
- Chassis2U chassis
- Consumption≤ 30 W
- Dimension (W × D × H)442 × 459 × 92 mm (17.4"× 18" × 3.6")
- GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Weight≤ 8.7 kg (19.2 lb.)
- Working Humidity10% to 90%
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Intelligent Analytics
- AI by CameraFacial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
- AI by NVRFacial recognition, perimeter protection, motion detection 2.0
- Engine1, engine mode is adjustable
- Motion Detection 2.0
- By CameraAll channels
- By NVRAll channels for Hikvision cameras
- Human/Vehicle Analysis32-ch
- Network
- APIONVIF (profile S/G); SDK; ISAPI
- Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Remote Connection128
- Perimeter Protection
- By CameraAll channels
- By NVR4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;Up to 12 rules in total
- Human/Vehicle AnalysisUp to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition;Up to 12 rules in total
- RAID
- RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10
- Video and Audio
- Audio Output2-ch, RCA (Linear, 1 KΩ)
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- IP Video Input32-chUp to 12 MP resolution*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
- Incoming Bandwidth320 Mbps
- Outgoing Bandwidth256 Mbps
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
- VGA 1 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA 2 Output1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
Tiekėjo specifikacijos
Category
32 Channel NVR
Product code
NVRDS9632NXII8E
Brand
Hikvision
Supplier's product code
NVRDS9632NXII8E
Product ID
U-4724820
