Prekės aprašymas

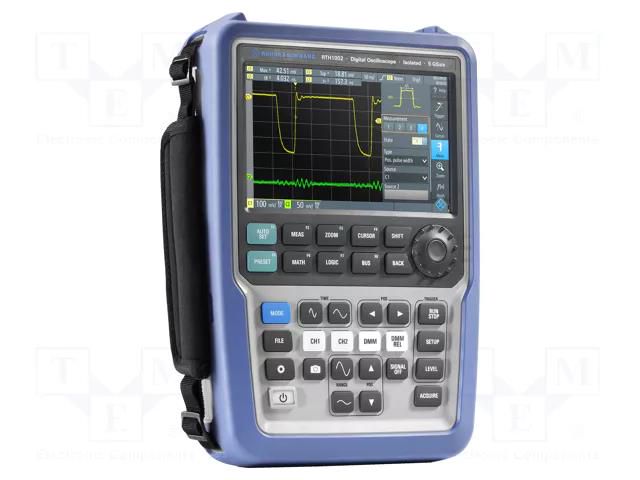

Handheld oscilloscope; Band: 500MHz; 9bit; colour,LCD TFT 7" ROHDE & SCHWARZ
Naudinga informacija
Specifikacijos
Tiekėjo prekės aprašymas
Handheld oscilloscope; Band: 500MHz; 9bit; colour,LCD TFT 7"
Naudinga informacija
Tiekėjo specifikacijos
Product code
RTH1052
Brand
ROHDE & SCHWARZ
Supplier's product code
RTH1052
Product ID
U-315233
AC voltage measuring accuracy
±(0.02% + 0.05% range)
AC voltage measuring range
1kV
Additional functions
multimeter
Band
500MHz
Battery/ rechargeable battery
rechargeable battery Li-Ion x1
Body dimensions
201x293x74mm
Capacitance measuring accuracy
±(1%+ 0.05% range)
Capacitance measuring range
10mF
Conform to the norm
EN 61010
Connectors for the country
USA
Continuity test
acoustic indication
DC voltage measuring accuracy
±(0.05% + 0.03% range)
DC voltage measuring range
1kV
Diode test
3V
Display resolution
800x480
Frequency measuring accuracy
±0.005%
Frequency measuring range
10kHz
Input coupling
AC, DC
Input impedance
1MΩ/12pF
Input sensitivity
2mV/div...100V/div
Interface
USB
IP rating
IP51
Kind of display used
colour
Manufacturer
ROHDE & SCHWARZ
Manufacturer series
RTH Scope Rider
Max. input voltage
300V
Measurement
AC voltage
Measuring instrument features
datalogging
Memory record length
500kpts
Number of channels
2
Power supply
rechargeable battery Li-Ion x1
Resistance measuring accuracy
±(0.08%+0.03% range)
Resistance measuring range
10kΩ
Rise time
0.7ns
Sampling
2,5Gsps
Software
dedicated mobile app
Standard equipment
power supply
Storage temperature
-20...50°C
Supply voltage
100...240V AC
Temperature measurement accuracy
±(0.13% + 1°C)
Temperature measuring range
-200...850°C
Time base
1n...500s/div
Type of oscilloscope
handheld oscilloscope
Touchpad
yes
Trigger
rising-edge
Trigger coupling
AC
Trigger modes
automatic
Trigger source
CH1
Vertical resolution
9bit
