Pristatymo terminai
Prekė užsakoma iš tiekėjo sandėlio. Jei tiekėjas šios prekės pristatyti iki nurodytos datos negalės, informuosime jus el. paštu.
 Yra | Tiekėjo sandėlis |
Pristatymas į namus
Pristatymas į namus
Virš 70,00 € (Užsakymams iki 1000 kg) | Nemokamai |
Iki 70,00 € (Užsakymams iki 3 kg) | 3,49 € |
Iki 70,00 € (Užsakymams iki 1000 kg) | 4,99 € |
Pristatymas į paštomatą
Pristatymas į paštomatą
2,39
Prekės aprašymas
Specifikacijos
Tiekėjo prekės aprašymas
Powerful performance

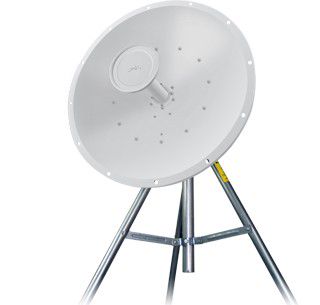

The Ubiquiti RocketDish RD-5G30 antenna is a high class device operating in the 5GHz frequency band and is remarkable with its gain of 30dBi. The RocketDish antenna offers 2x2 bipolar operation characteristics, its dish diameter is 648 mm. RocketDishes along with Rocket devices can be deployed in a network to deliver bandwidth from the ISP's network to the adjacent tower. The airMAX sector with Rocket technology then provides ISP customers with the appropriate capacity.
Installation of the RocketDish antenna
Robust construction
RocketDish antennas are equipped with a reflector with excellent beam directionality and have a stable mechanical construction using a durable material for outdoor use.
Plug and Play integration
RocketDish and Rocket devices are designed to be easy to install and work with all other Rocket devices. Installation of the Ubiquiti RocketDish 5GHz 30dBi dual parabolic antenna does not require any additional components or resources. Mounting parts of RocketM devices correspond to dedicated mountings used for airMax antennas.
| Antenna frequency | 5 GHz |
| Antenna type | Directional |
| Energy gain | 21dBi - 30dBi |
| Antenna gain level (max) | 30 |
| Antenna type | Sector antenna |
| Application | Outdoor |
| Certification | EN 302 326 DN2 |
| Compatible with brand | Ubiquiti |
| Cross polarization isolation | >35 dB |
| Depth | 650 |
| Frequency band | 5.1 - 5.9 |
| Front-to-back ratio | 35 dB |
| Harmonized System (HS) code | 85177100 |
| Height | 304 |
| Horizontal beam width | 5 |
| Horizontal beamwidth | 5° |
| MIMO Type | 2x2 |
| Mounting | Wall |
| Polarization | Double linear |
| Polarization | Dual polarization |
| Product colour | White |
| Purpose | Outdoor |
| Quantity per pack | 1 |
| Vertical beam width | 5 |
| Vertical beam width (2.4 GHz) | 2 |
| Vertical beamwidth | 5° |
| Voltage Standing Wave Ratio (VSWR) | 1.4:1 |
| VSWR | 1.4:1 |
| Weight | 9.8 |
| Width | 650 |
