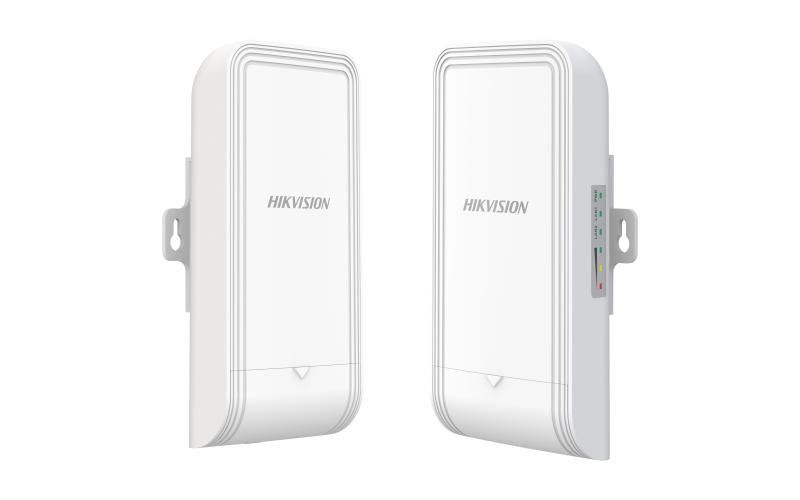

Wireless bridge transmitter Hikvision DS-3WF1000-EI-2N
Prekės kodas: HIKDS3WF1000EI2N
Nuotrauka yra tik iliustracija. Tikslias produkto specifikacijas rasite aprašyme.
Pristatymo terminai
2025-08-08 Numatomas pristatymas užsakius dabar
Prekė užsakoma iš tiekėjo sandėlio. Jei tiekėjas šios prekės pristatyti iki nurodytos datos negalės, informuosime jus el. paštu.
 Yra | Tiekėjo sandėlis |
Pristatymas į namus
Pristatymas į namus
Perdavę prekes kurjeriui, informuosime Jus el. paštu.
Virš 70,00 € (Užsakymams iki 1000 kg) | Nemokamai |
Iki 70,00 € (Užsakymams iki 3 kg) | 3,49 |
Iki 70,00 € (Užsakymams iki 1000 kg) | 3,49 - 4,99 € |
Pristatymas į paštomatą
Pristatymas į paštomatą
Perdavę prekes kurjeriui, informuosime Jus el. paštu. Užsakymai virš 50.00 € pristatomi nemokamai.
2,39
Prekės aprašymas
Wireless bridge transmitter Hikvision DS-3WF1000-EI-2N
Specifikacijos
Tiekėjo prekės aprašymas
- Up to 1 Km wireless transmission distance
- 300 Mbps 802.11n wireless bridge
- Built-in 7dBi 2 x 2 MIMO antenna
- Visualized topology management
- Real-Time alarm push technology
- This is a set – the package includes 2 pieces.
- Approval
- ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
- General
- Gross Weight0.9 kg (1.98 lb)
- Ingress ProtectionIP55
- Installation ModePole Mounting
- Net Weight 0.26 kg (0.57 lb) per device
- Package Dimensions (W × H × D)256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")
- Packing ListWireless Bridge × 2,Power Adapter (12 VDC, 1 A) × 2,10/100 Mbps PoE Injector × 2,Binding Tape × 4,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
- Packing MethodPacking in pairs
- Power Consumption1.8 W for typical (1-ch 2MP IPC), Max. 4.5 W
- Product Dimensions (W × H × D) 90.8 mm × 187.87 mm × 57.87 mm (3.57'' × 7.39'' × 2.27'')
- Storage Humidity5% to 95% (no condensation)
- Storage Temperature-40 °C to 80 °C (-40 °F to 176 °F)
- Working Humidity5% to 95% (no condensation)
- Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)
- Hardware Parameter
- LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
- Network Interface2 × 10/100 Mbps RJ45 ports
- Power Supply12-24 VDC Passive PoE
- ResetHardware resetting button
- Software Function
- Application FunctionIFM,IPM
- Channel SelectionAuto/manual selection
- Channel Width10/20/40 MHz
- HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Reboot device2. Restore device3. Display the topology information4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power6. Bridge alignment7. Spectrum scanning
- Management MethodHCP,Web,iVMS-4200,HPP
- Network ProtocolNTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
- Security MechanismWireless network name hidden
- Security ModeWPA2-PSK
- System LogSyslog,Control center information
- UpgradeWeb,iVMS-4200,HCP,HPP
- Wireless Parameter
- Antenna Angle(H) Beamwidth [3 dB] 60° (V) Beamwidth [3 dB] 50°
- Antenna Gain7 dBi
- Max. Transmission Rate of Air Interface≤ 300 Mbps
- Receiving Sensitivity-87±2 dBm @HT40 MCS0
- Throughput RatePTP: ,90 Mbps/0.2 KM(HT40),90 Mbps/0.5 KM(HT40),70 Mbps/1 KM(HT40),PTMP(1 to 4): ,40 Mbps/1 KM(HT40)
- Transmitting Power22 dBm @11n MCS0 (Note: Transmitting power may vary with local regulations.)
- Wireless StandardIEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps)
- Working Frequency Band2400 MHz ~ 2483.5 MHz
Tiekėjo specifikacijos
Product code
HIKDS3WF1000EI2N
Category
Rang
Brand
Hikvision
Supplier's product code
HIKDS3WF1000EI2N
Product ID
U-4674980
Tiekėjo pateikiama informacija apie prekę gali skirtis nuo realaus produkto. Jei pastebėjote neatitikimų praneškite apie tai el. paštu [email protected].
