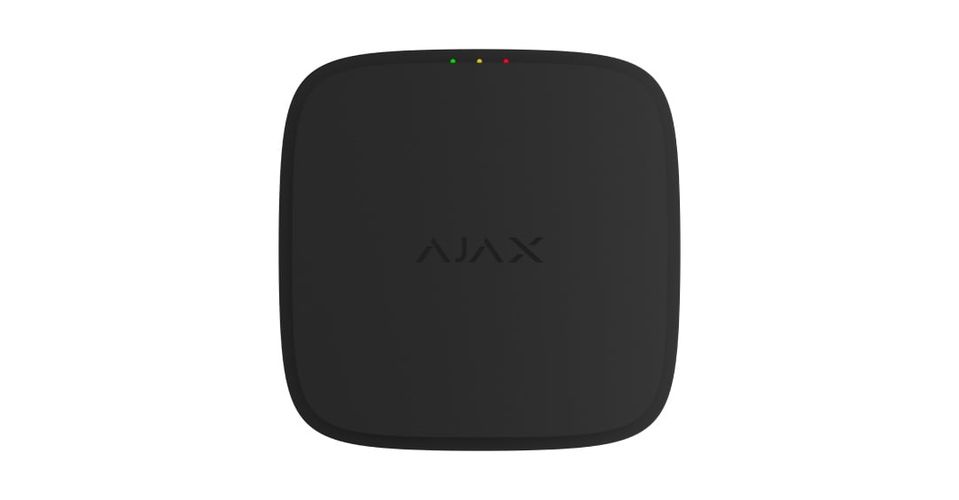

Wireless heat detector Ajax EN54 FireProtect (heat/sounder) 119916.274.BL1 (black, with siren)
Prekės kodas: AJAXEN54FRPRTEMPSRJ
Nuotrauka yra tik iliustracija. Tikslias produkto specifikacijas rasite aprašyme.
Pristatymo terminai
2025-11-11 Numatomas pristatymas užsakius dabar
Prekė užsakoma iš tiekėjo sandėlio. Jei tiekėjas šios prekės pristatyti iki nurodytos datos negalės, informuosime jus el. paštu.
 Yra | Tiekėjo sandėlis |
Pristatymas į namus
Pristatymas į namus
Perdavę prekes kurjeriui, informuosime Jus el. paštu.
Virš 70,00 € (Užsakymams iki 1000 kg) | Nemokamai |
Iki 70,00 € (Užsakymams iki 3 kg) | 3,49 |
Iki 70,00 € (Užsakymams iki 1000 kg) | 3,49 - 4,99 € |
Pristatymas į paštomatą
Pristatymas į paštomatą
Perdavę prekes kurjeriui, informuosime Jus el. paštu. Užsakymai virš 50.00 € pristatomi nemokamai.
2,39
Prekės aprašymas
Wireless heat detector Ajax EN54 FireProtect (heat/sounder) 119916.274.BL1 (black, with siren)
Specifikacijos
Tiekėjo prekės aprašymas
- Type: Wireless heat detector with siren
- Model: Ajax EN54 FireProtect (Heat/Sounder) Jeweller
- Color: Black
- Communication range: up to 1700 m in open space
- Alarm transmission time to CIE: up to 3 s
- Siren: Built-in, up to 85 dB (32 tones)
- Temperature detection: 2 thermistors, supports A1, A1R, A1S, B, BR, BS, C, CR, CS modes
- Power supply: 2 x CR123A batteries (up to 5 years of operation)
- Protection class: IP21C
- Certificates: EN54-5, EN54-25
- Product code: 119916.274.BL1
- General
- Product nameAjax EN54 FireProtect (Heat/Sounder) Jeweller
- TypeWireless addressable point heat detector with built-in fire alarm sounder
- Compliance standardsEN 54-5, EN 54-25, EN 54-3; Directive 2014/53/EU (RED)
- Heat detectionTwo thermistors for accurate detection of flaming fires and rapid temperature rise
- Sensor modesA1, A1R, A1S, B, BR, BS, C, CR, CS, and fixed temperature modes
- Mode selectionSelectable via Ajax apps
- Alarm transmissionDelivered to the CIE in under 3 seconds
- Alarm typeAcoustic; up to 85 dB at 1 meter
- Sound pattern32 selectable tones; configurable via Ajax PRO app or user settings
- Alarm synchronizationSynchronized with other sounders connected to the same CIE
- Communication rangeUp to 1,700 m in open space; connectable to range extender (sold separately)
- Radio protocolJeweller; automatic power adjustment, frequency hopping, and connection loss detection
- Radio frequency bands866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz (region-dependent)
- Max ERPUp to 20 mW
- Battery type2 × CR123A (pre-installed)
- Battery lifeUp to 5 years
- Battery replacementTool-free; enclosure does not need to be disassembled
- Mounting methodSmartBracket with 90° rotation and optional locking
- Remote configurationSupported via Ajax apps
- Installation methodQR code pairing, no programming required
- Operating temperature–10 °C to +50 °C
- Operating humidityUp to 80%
- Enclosure colorBlack, white
- Dimensions124 × 124 × 54.2 mm
- Weight278 g
- Protection classIP21C
- Flammability ratingUL 94 V-0
- CompatibilityWorks with Ajax CIE and Fire ReX range extenders
- Included in packageEN54 FireProtect (Heat/Sounder) detector, 2 × CR123A batteries (pre-installed), SmartBracket mounting panel, installation kit, quick start guide
